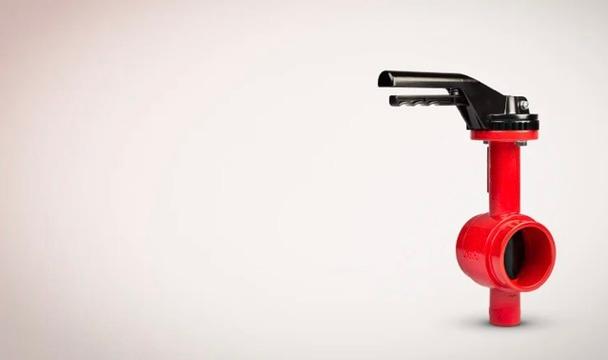

Grooved Connection
Quick and secure grooved coupling system
Technical Data
| Manufacturing Range | DN50 - DN300 |
| Face to Face | MSS SP 67 |
| Flange Mounting | ANSI/AWWA C606-97, ANSI 3616, ISO 4200 |
| Flanges | ANSI B3610, DIN 2448, BS 1387, BS 3600 |
| Top Flange Connection | ISO 5211 |
| Testing | ISO 5208 zero leakage, API 598 |
| Coating | Rilsan® / Epoxy |
| Working Pressure | 16 bar |
Grooved Connection
Characteristics
Grooved coupling provides secure, simple and quick connection
No welding or coupling flanges required
Vulcanized butterfly provides perfect sealing
Low operating torque
Lightest valve on the market
Easy and quick assembly and disassembly
Adapts to all types of pipes
Aerodynamic disc design that minimizes pressure loss
Does not require perfect alignment between valve and pipe, allows some flexibility
Valve indicated for water pipelines, especially for fire protection
TA-LUFT VD 2440 design
General Applications
Irrigation
Drinking water
Seawater
Water supply
Industrial water
Wastewater
Fire protection systems
Cooling towers
Pumping stations
Food industry
Paper industry
Chemical and petrochemical industry
Naval and marine environment
Steel industry
Power generation
Oil industry
Sugar industry
Cement industry
Mining
Construction
